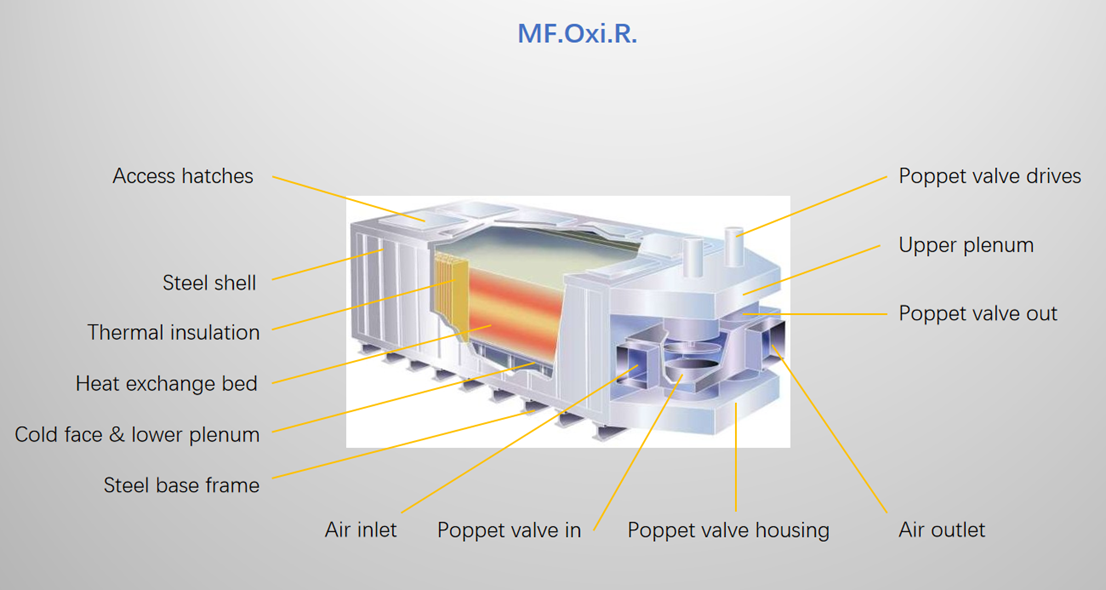

New Fuel Heating Type Regenerative Oxidization unit

Flamed

Burner with injection of fuel to heat-up and thermal run
Oxidization zone in heat exchange bed or empty chamber as customized designed
Fuel selection variable, natural gas, propane, bio gas, diesel as commonly used
Modularized assembly, site installation work is greatly reduced

Regenerative

Heat exchange maintains in ceramic heat- retaining bed, thermal slow
Ceramic bed surface area big & thickness thin
Heat distribution in ceramic bed is even
Flow through ceramic bed is even
Cold face air velocity low
Pressure drop through ceramic bed low
Thermal efficiency higher than 95%
Low volume of fresh air flows through heat exchange bed during heat up, certain thermal loss

Thermal Oxidization

Hot face air velocity slow
Self thermal sustain run at low VOCs concentration lower than 1.5g/Nm3, or lower
Destruction Removal Efficiency of hydrocarbons ≥99%, emission to a minimum
Operating temperature in range of 800~1000 °C, depending on characters of VOC components in coming off gas
Combustion air needed as per design
Purge line as per design

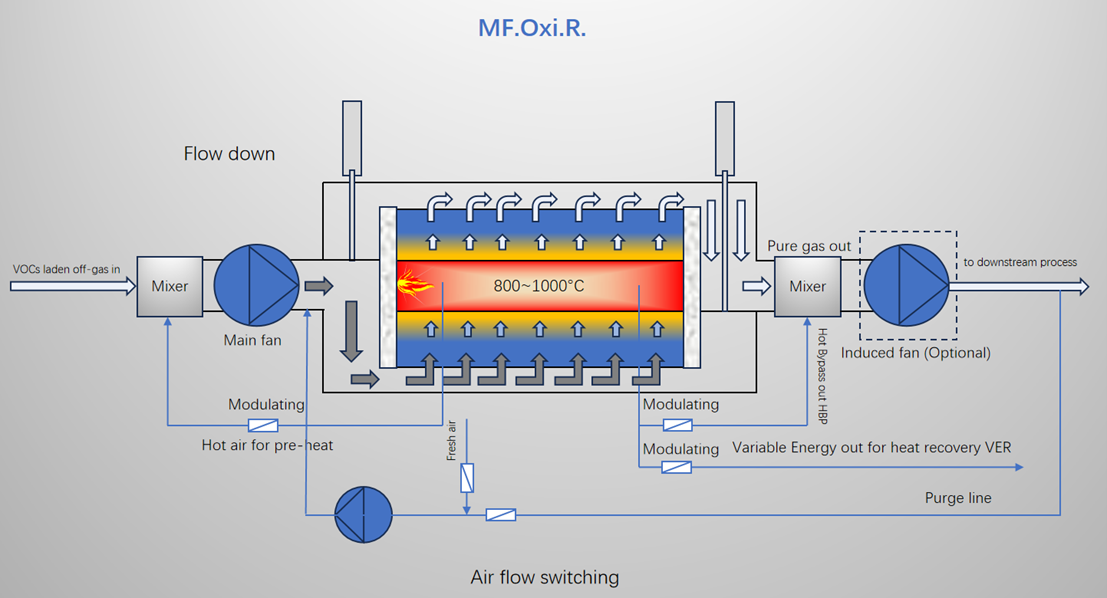

Flow switching is cycled by in & out poppet valves
Optional usage of excess heat if there is,
Pre-heat incoming off gas
Variable energy (VER) towards downstream process for heat recovery
Slight amount of hot air towards hot bypass to mix with colder pure gas to get emitted out
